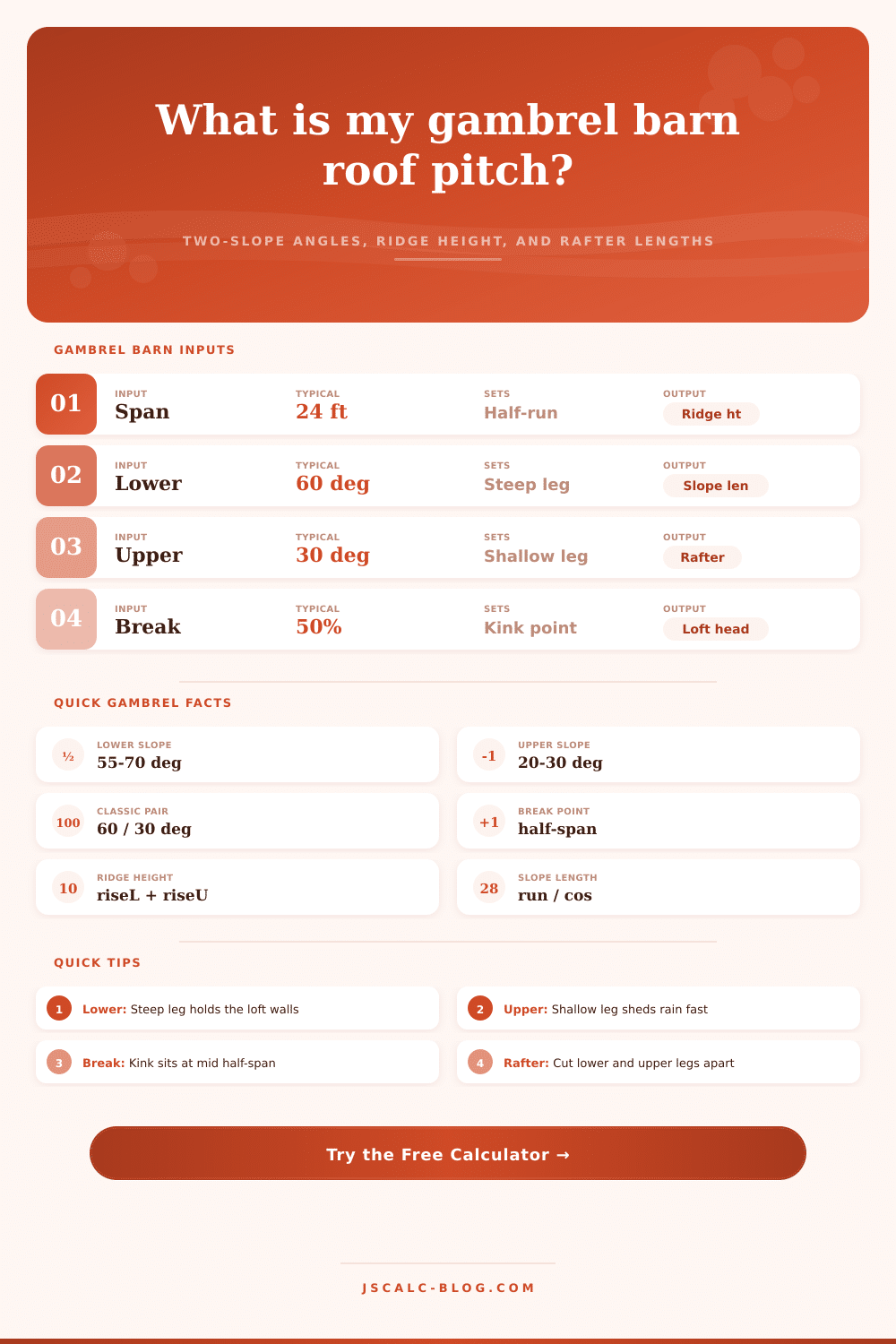

Barn Roof Pitch Calculator: Gambrel Angles & Rafters

Go out and look at some of those Midwestern or New England barns. Notice how the roofline seem almost too generous for its frame. Side walls rise almost vertically, then flare outward. Not accidental; rather, it’s a deliberate reaction to a desire for storage space and a need to withstand gravitational force. A gambrel roof provide internal space with less wall height. Essentially, it enables you to add second-floor feel on a loft level.

The angles reflect this shape. It calculates heights and make a cut list from your dimensions. You have two opposing slope here. One is steep, typically ranging from fifty-five to seventy degrees, and it elevates and extends the roof line. The other is shallow, commonly in the range of twenty to thirty degrees, and its purpose are simply to shed snow and water.

Understanding Gambrel Roofs and How to Measure Them

The steep slope is what give the barn its bulk. Make the former too high and rafters become unstable; make it too low, and you’ll lose headroom rapidly. The latter links the steep walls with the ridge. And there it is: the secret lies in the angles. Most common are a blend of thirty degrees on top and sixty on the bottom. Such a shape look traditional and holds up well.

And then there’s the break point. That’s where top slope meets the bottom slope. And that controls how much vertical wall space you gets in there. By default, tool just places the break halfway through span and centers it. Tweak that and nature of interior shifts. A higher break yields more vertical wall surface close to eaves. Fewer overall loft. A lower break makes for maximum loft footprint. There is less standing room.

And that’s a trade off: Either more floor space (lower), or more headroom (higher). Each builder need to balance that against his plans for what he’ll be raising/lifting underneath the roof. After geometry, we move on to building out with lumber. Now, you don’t just cut your gambrel rafters off of one long board. To build a gambrel roof, you need two separate boards, attached at their break point. This calculator will divide up those measurements for you. What it does is provide total length of the upper leg, and then also the total length of lower leg.

That’s important because frame lumber come in standard lengths. If you know that your lower rafter needs to be twelve feet long plus an overhang, you can plan to buy lumber accordingly. You won’t need long, wasteful timbers. Do not splice short timbers together which weakens your entire frame. A very practical thing that frequently goes unnoticed is the height of the ridges. Calculating angle times width ignore the height of the walls above the floor plate. It also ignores the rise from both lower and higher roof portions. If there are constraints at your site, they matter. Local zoning may limit building height. Or perhaps tree branches limits your buildable height. Just one small adjustment in upper slope angle can result in saving a foot of vertical clearance.

You can see this clearly when you look at the reference tables on the page. These display how standard angles combine with span widths to create particular ridge heights and rafter lengths. A gambrel roof marries structural ease to volumetric usefulness. How much do you desire the roof to hold? Hay? Vehicles? Then you want some volume. And how easy is it to frame without an engineering degree? With the gambrel, you have the chance to play with the roof’s upper shallowness combined with its lower steepness and mold it to suit your needs.

You should of used the math. Let the math do the figuring. Use your judgment on whether that math makes sense relative to what you are building. If done correctly, exterior appears functionally useful. The interior, well…it seems roomy.
